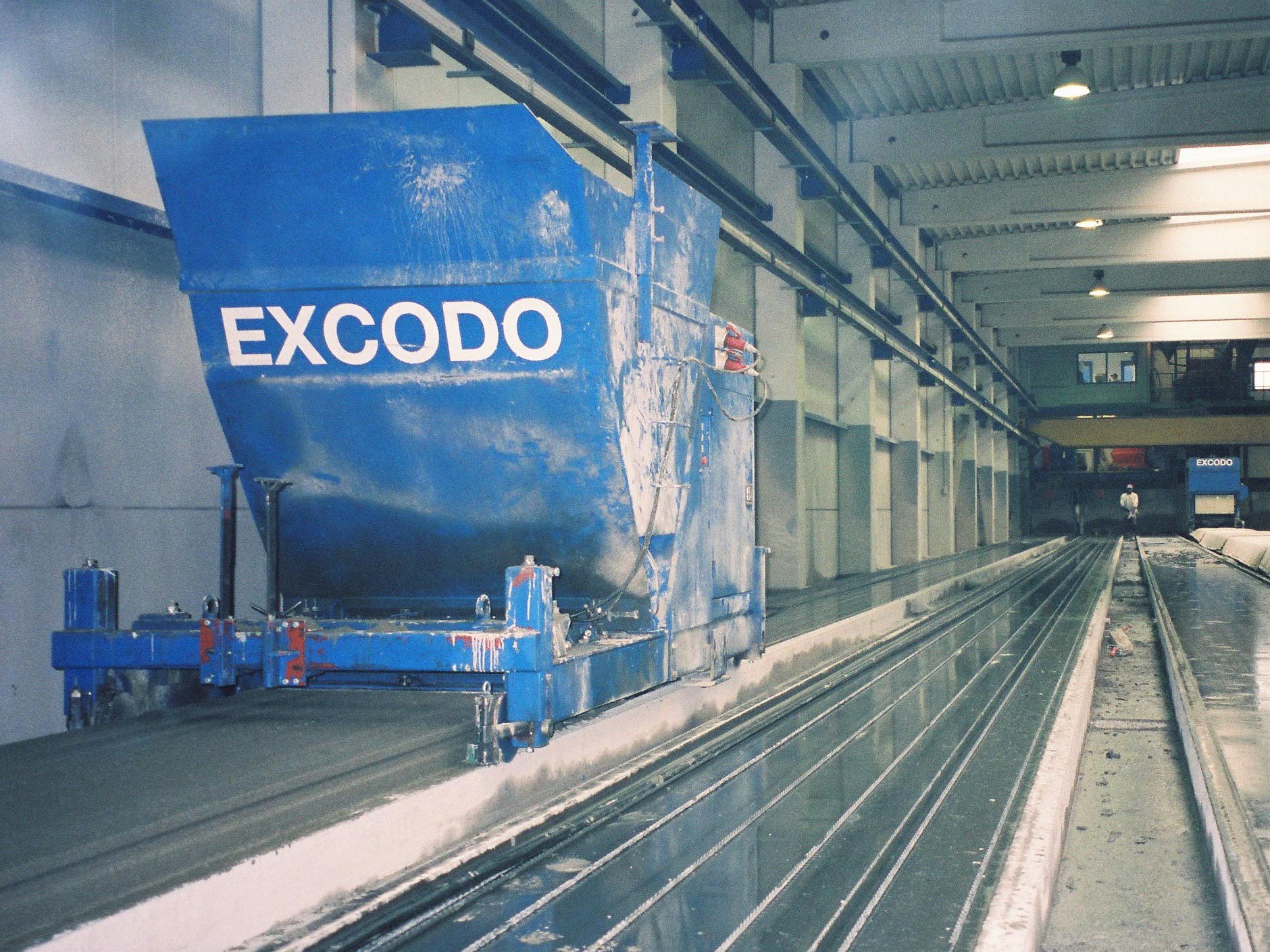

CASTING-BEDS

The casting-beds play an important role in the quality of the produced hollow-core slabs. The EXCODO casting-bed has been developed to quarantee the best result.

Specifications

Important advantages of the EXCODO Casting-beds are:

Due to the unique construction the coefficent of expansion is minimised

the strands can be stressed on the casting-bed itself, heavy stress-blocks at both sides not needed

Pre-fabricated construction, quick installation.

minimum investment-, and productioncosts

Optimal price/ quality-rate

Technical Specification

(Under)frame

Specific (under)frame-construction (pieces of 12m1)
At both ends of the bed are the stress-blocks, which are part of the bed itself.
The bed itself is given a permanent stress. Therefore special stresswires are put in the (under)frame.
Optional integrated heating-tubes to reduce the production cycle-time.

Topside

On the (under)frame normally a steel-plate with round edges will be installed together with plain St.52-rails. Another possiblility is to install V-shaped St.52-rails weld on a plain steel-plate.

Installation

(under)frame-construction (pieces of 12m') are placed
Special stress-wires placed inside the frame
Heating-tubes placed inside the frame
The (under)frame is filled with concrete
The bed is given it's permanent stress
The upper-plate and rails is placed and welded on the frame.
Installation normally under supervision

Beside the above described casting-beds for hollow-core slabs EXCODO also delivers other type of casting-beds/ moulds, for example

Casting-beds/ moulds for TTT-elements
Casting-beds/ moulds for ground-floors
Etc.
